SPECIFICATIONS

Auto Leveling: No



Bed Temp: N

CE Certification: Yes

Certification: CE

Consumables Diameter: N

Diameter Temp: N

File Format: ALL

Fliament: UV Resin

High-concerned chemical: None

Interface Type: USB

Language: Supports 8 languages

Maximum Print Size: 6.04*3.42*6.48inch (LWH)

Molding Technology: LCD

Nozzle Diameter: N

Operating System: Photon Mono 4 Ultra

Precision: 10K+ 9024x5120px

Slice Software: Anycubic Photon Workshop

Slice Thickness: 0.02-0.15mm

Voltage: 110-220V

Wireless Connectivity: None

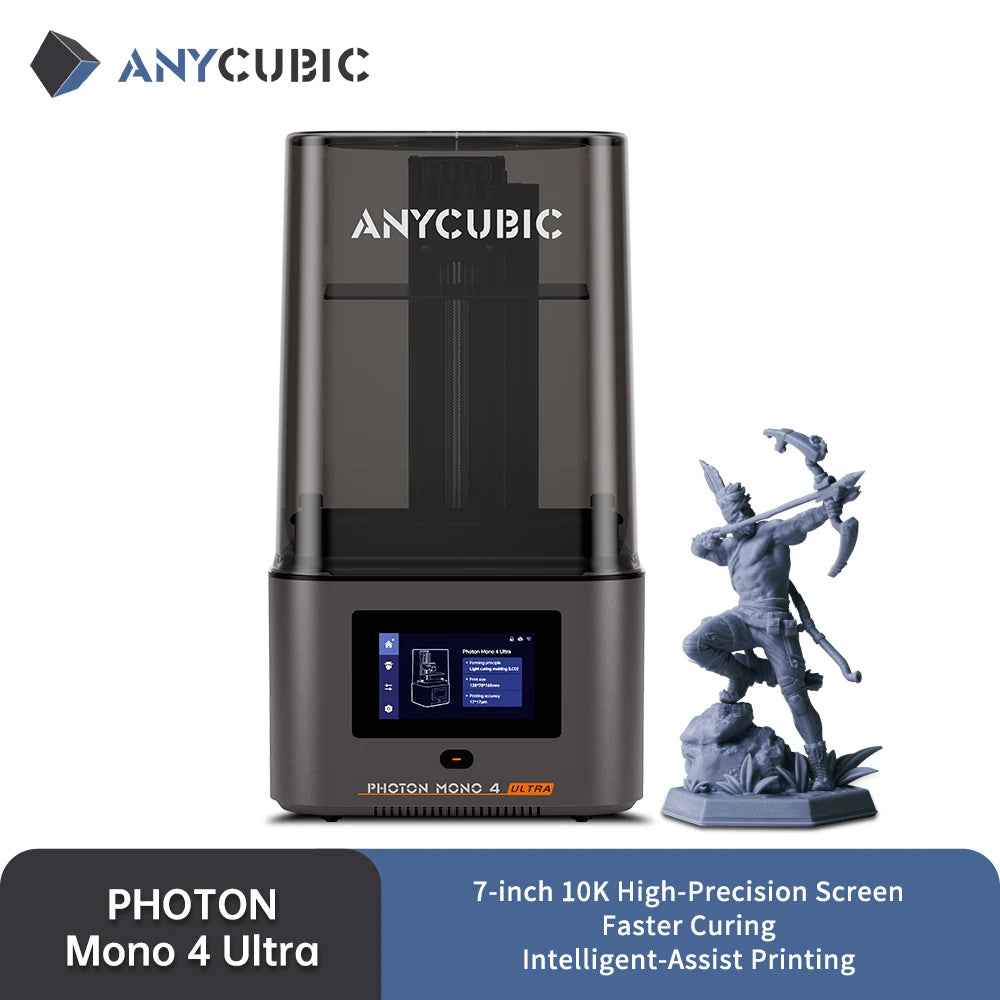

ANYCUBIC Photon Mono 4 Ultra AE Version



Features:



●10K high-precision, almost detail-perfect printing , precision increases by 105%

●Faster curing, intelligent-assist printing

●Uses advanced COB light source integrated with Fresnel lens

●HD Touchscreen with 8 Languages

●Print speed 80mm/h , 0.1mm layer with high standard resin ; print speed 120mm/h ,  0.1mm layer with high speed resin 2.0



Specifications:



●Z Axis：Single liner with 20μm accuracy

● Build Platform: Laser engraving aluminum alloy

● Exposure Screen: 7"  monochrome

●LCD Resolution：10K (9024*5120px)

● Light Source: COB Light Source and Fresnel Lens and Factory Algorithm Calibration

● Control Panel: 4.3" TFT touch-control

● Data Input: USB-A 2.0, WIFI

● Machine Leveling: 4-point manual leveling

● Printing Speed 1: 80mm/h peek speed(Standard Resin 0.1mm layer height)

● Printing Spee2: 120mm/h peek speed(High Speed Resin 0.1mm layer height)

● Printing Dimensions: 6.04*3.42*6.48in./153.4*87.*165mm (HWD)

● Product Dimensions:236mm*231mm*430mm/ 9.29*9.09*16.93in.(HWD)

● Machine Weight: 5KG/11lb.

●Maximum print volume：2.2L/74.4oz.





Outsmart, Outstart

10K High-Precision | Faster Curing | Intelligent-Assist Printing

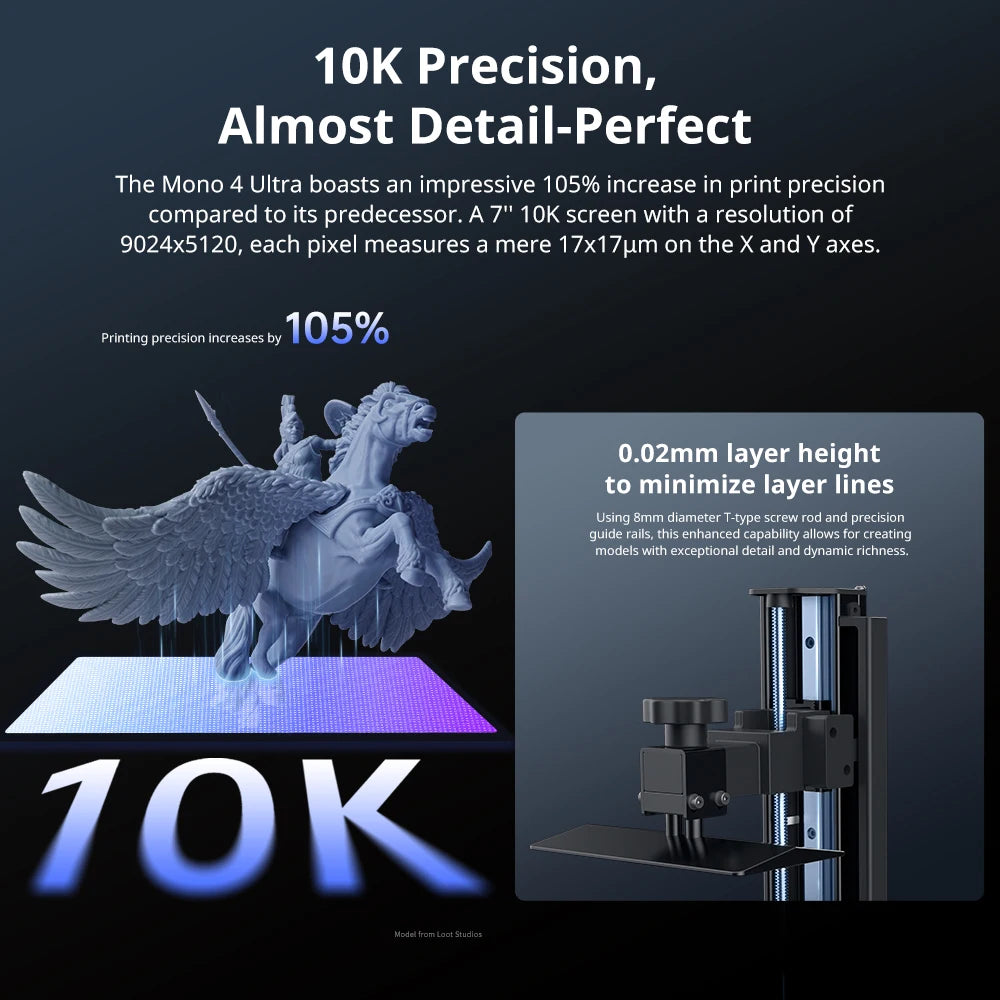

10K Precision, Almost Detail-Perfect

*The Mono 4 Ultra AE Version boasts an impressive 105% increase in print precision compared to its predecessor. A 7" 10K screen with a resolution of 9024x5120, each pixel measures a mere 17x17μm on the X and Y axes



*0.02mm layer height to minimize layer lines. Using 8mm diameter T-type screw rod and precision guide rails, this enhanced capability allows for creating models with exceptional detail and dynamic richness.

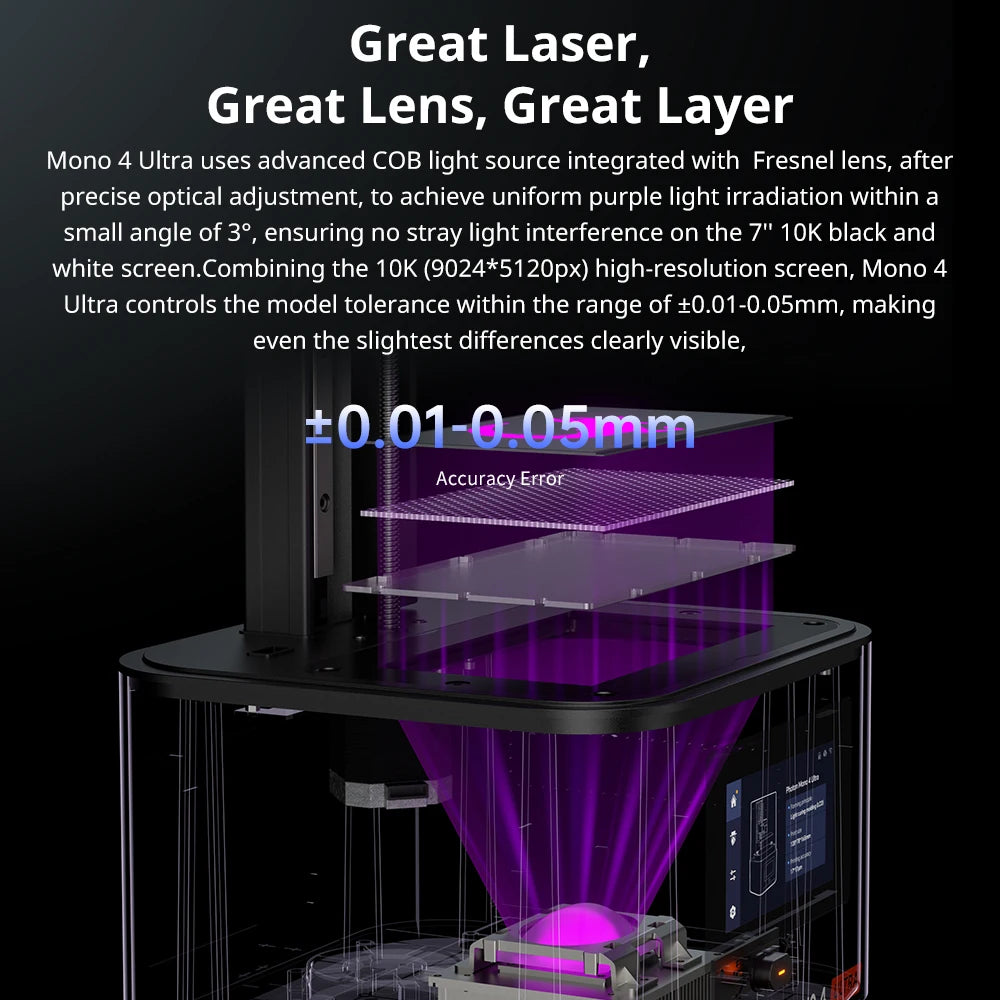

Great Laser, Great Lens, Great Layer

Mono 4 Ultra AE Version uses advanced COB light source integrated with Fresnel lens, after precise optical adjustment, to achieve uniform purple light irradiation within a small angle of 3, ensuring no stray light interference on the 7" 10K black and white screen. Combining the 10K (9024 5120px) high-resolution screen, Mono 4 Ultra controls the model tolerance within the range of 0.01-0.05mm, making even the slightest differences clearly visible, ensuring that every detail of the model is accurately carved.



Consistent, Even on All Layers

With the Light Uniformity Algorithm, each device undergoes rigorous screen energy calibration, the light uniform rate reaches >=90%. The algorithms adjust energy points outside the dynamic range, precisely controlling curing light energy. This reduces dimensional errors in each printed layer, ensuring consistent printing.





Level Up & Speed Up

*It's the Latest ACF Film, not Luck Release film coating improvements

* Intelligent Release Algorithm Save 40% on print time, boost 100% of your spirit.

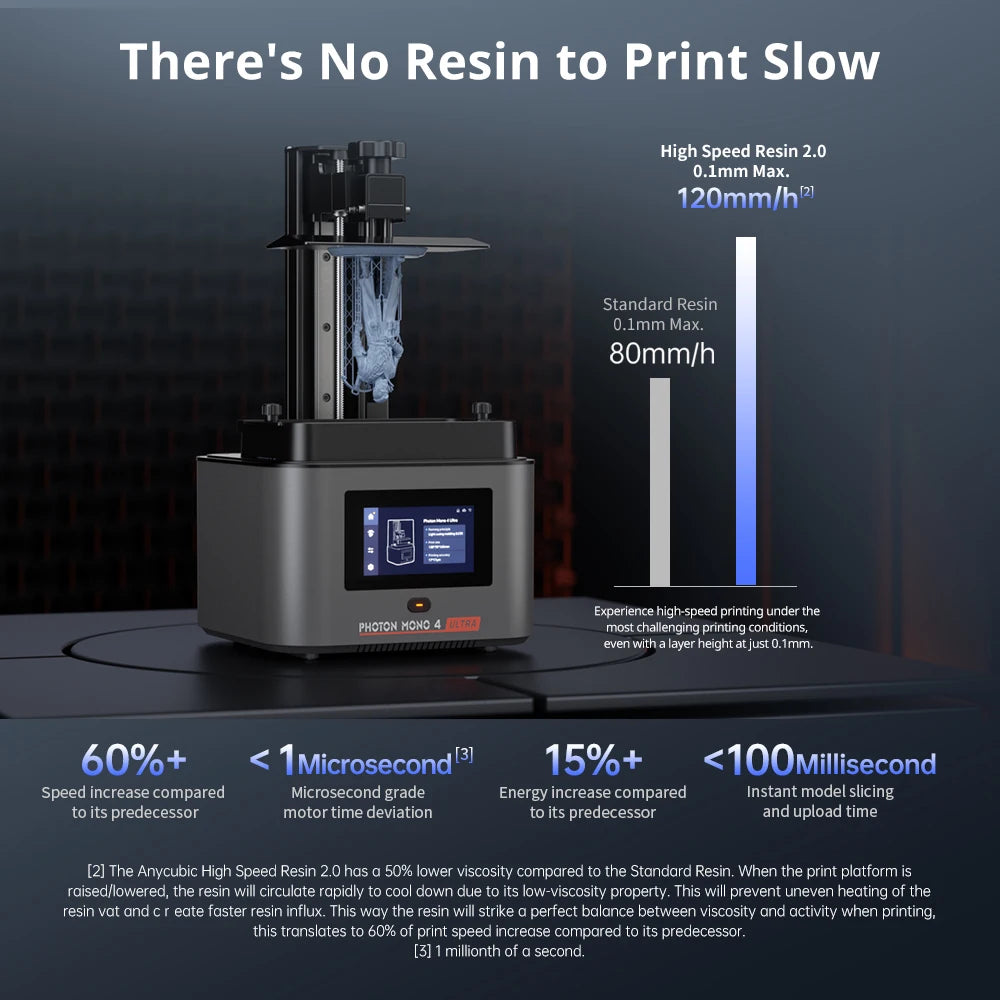

There's No Resin to Print Slow

*High Speed Resin 2.0 0.1mm Max 120mm/h

*Standard Resin 0.1mm Max 80mm/h

*Experience high-speed printing under the most challenging printing conditions, even with a layer height at just 0.1mm.

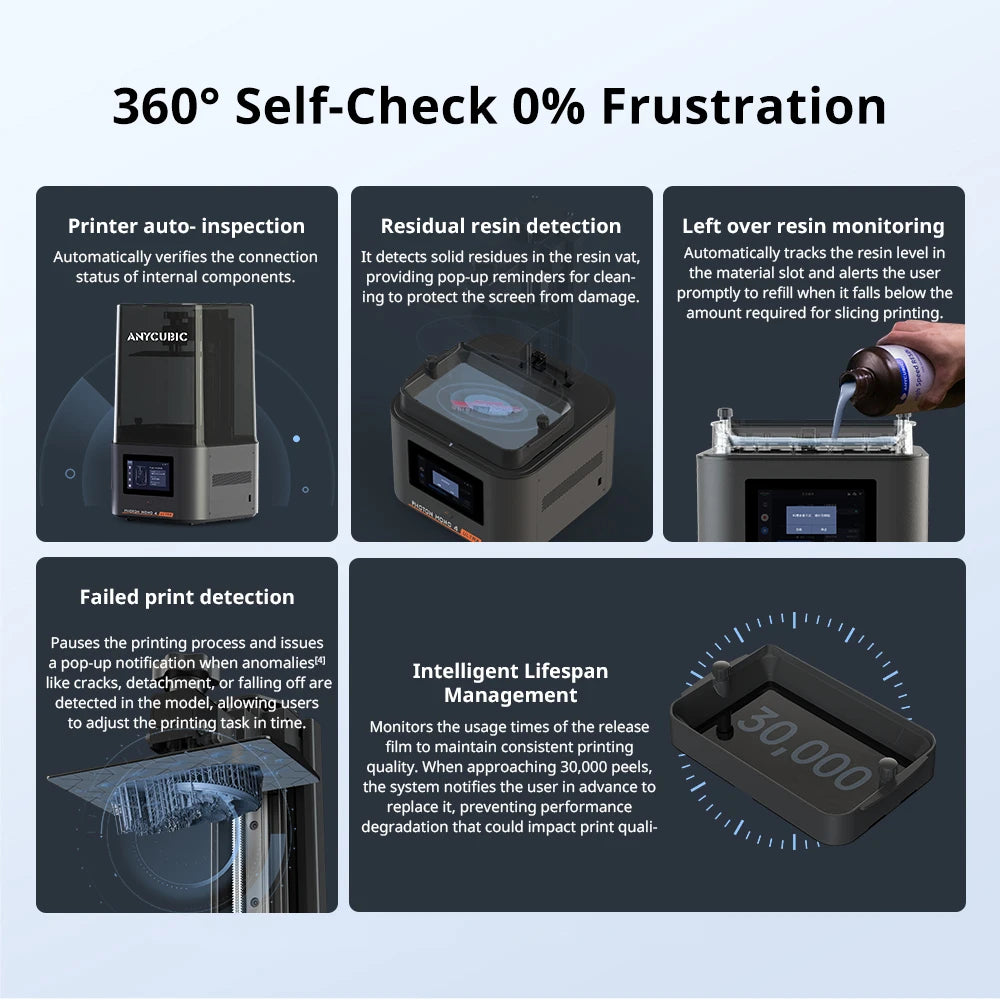

360°Self-Check. 0% Frustration

Printer auto- inspection | Residual resin detection | Left over resin monitoring | Failed print detection | Intelligent Lifespan Management





4-Point Leveling Efficiency

*Every Mono 4 Ultra AE Version printer was assembled, calibrated, tuned, andtested before shipment. So when you received the printer,simply unbox and start printing! (Leveling is needed before printing.)





HD Touchscreen with 8 Languages

4.3-inch high-definition screen, all-new UI design, simple operation, supports 8 languages, while providing a friendly and comfortable interactive experience.



Activated Carbon Air Purifier

The built-in high-density activated carbon filter has a thickness of 18 mm and a weight of 17 grams. It can effectively adsorb odor molecules generated during the 3D printing process, improving the air quality in the area. (This configuration requires additional optional purchase)





Breakthrough in Resin Technology





The Anycubic App



Multi-device sync-up: Whether it's the website, slicing software, or printer, simply log in with the same account to easily achieve seamless cross-platform connectivity.

Cloud printing: Download the Anycubic App to directly access the Makeronline online model library on your smart phone, initiating print tasks through the cloud. Additionally, a cloud printing parameter library is available,recommending optimal print parameters based on various resins.







Anycubic Photon Workshop Magic



Fully Automated Support Generation: Intelligent analysis and optimization of support structures ensure 100% penetration-free models with smaller touchpoints for easier removal post-printing.

Customizable Support Optimization: Move and edit supports directly for personalized adjustments.

Smooth Layer Transitions: Anti-aliasing reduceslayer lines, making slopes and curves smoother.

Remote operation: You can slice on the software side,initiate remote printing tasks,and view theprinting progress and related information in real time.



Interactive 3D Printing Ecosystem



Massive model resources: Anycubic's self-operated model library website, Makeronline, provides excellent models from over 3000 designers worldwide.

Monetizing creative value: Users can easily earn gift cards and points by sharing their work or participating in printing theme contests.

Experience exchange: Engage with 3D printing enthusiasts worldwide.

Instant activation: If you have Anycubic Photon Workshop (vertical dimension slicer software) installed on your computer, simply download the model from Makeronline to one-click launch the slicing software. Then, generate the slicing file and export it to the associated printer to complete the printing process.



Photon Mono 4 AE Version Series Specification



Empower your Creativity



The recommended print parameters for using Anycubic Photon Mono 4 Ultra AE Version with the Anycubic resin are set as follows:



In the Box



Anycubic Photon Mono 4 Ultra AE Version Product Details





FAQ:



Q1: What type of resin is used in conjunction with the machine?

A1: Standard Resin or  High Speed Resin.



Q2: What is the light source of the machine?

A2: COB light source+Fresnel Lens+Factory Algorithm Calibration.



Q3: How many languages does this machine support?

A3: Supports 8 languages and offers a friendly and comfortable interactive experience.
