SPECIFICATIONS
Application: Desktop,Server,Workstation
Back I/O Ports: WiFi,Disply Port
Battery Included: No
Chipset: AMD B650
Chipset Manufacturer: AMD
Form Factor: Micro-ATX
High-concerned chemical: None
Maximum Ram Capacity: 96GB
Memory channel: Double
Number Of Memory Slots: 2
Number of M.2: 3
Number of PCI: 2
Number of PCIe x 1: 0
Number of PCIe x 16: 2
Number of PCIe x 4: 0
Number of PCIe x 8: 0
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),RGB Header,USB 3.0 Connector
Onboard LAN: WIFI 6 (AX)
PCI - E standards: PCI-E 2.0
Package: Yes
Ports: HDMI
Processor compatibility: AMD Ryzen 7000 Series-R3,AMD Ryzen 7000 Series-R5
RAID Supported: No
Socket Type: Socket AM5
Special Features: RGB,Cooling Armor,Support for Overclocking
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR5
Support USB Type: USB 3.0,USB 3.2 Gen1,USB 3.2 Gen2,USB 3.2 Gen2 X2
Supports M.2 SSD: 2242,2280,2260,22110
With CPU: No

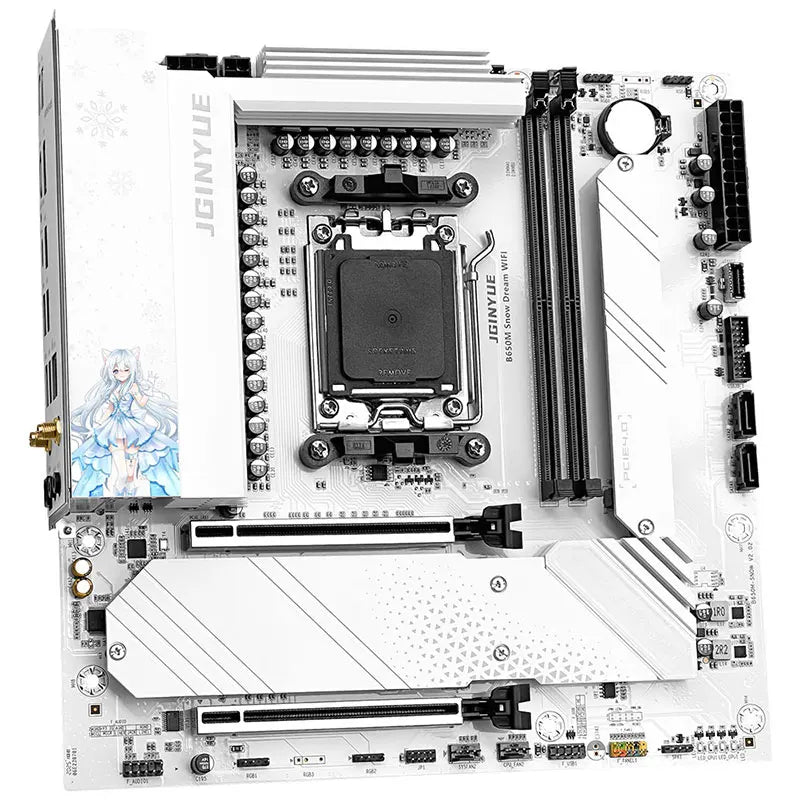

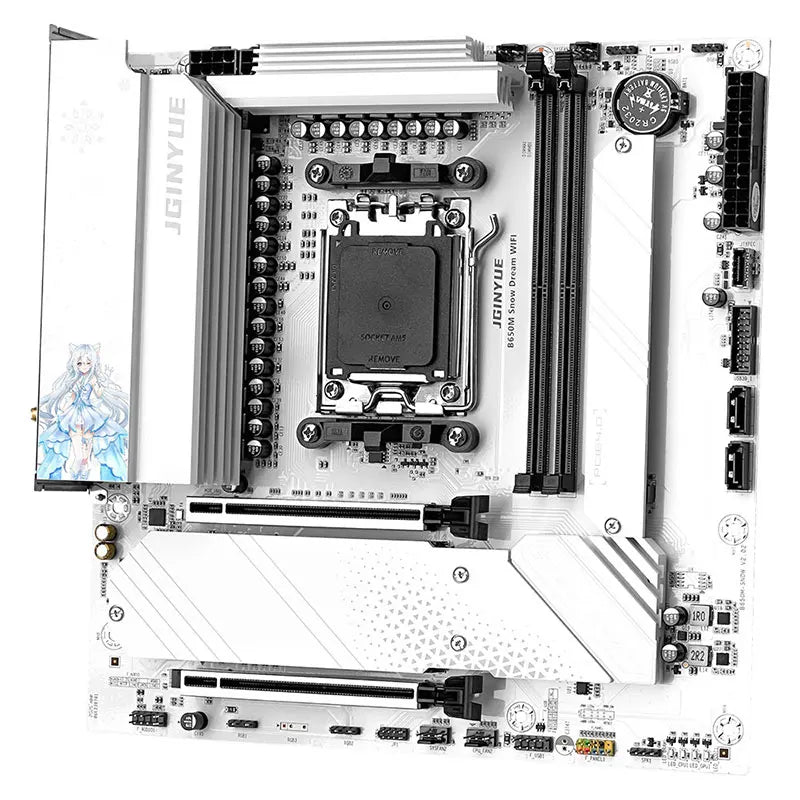

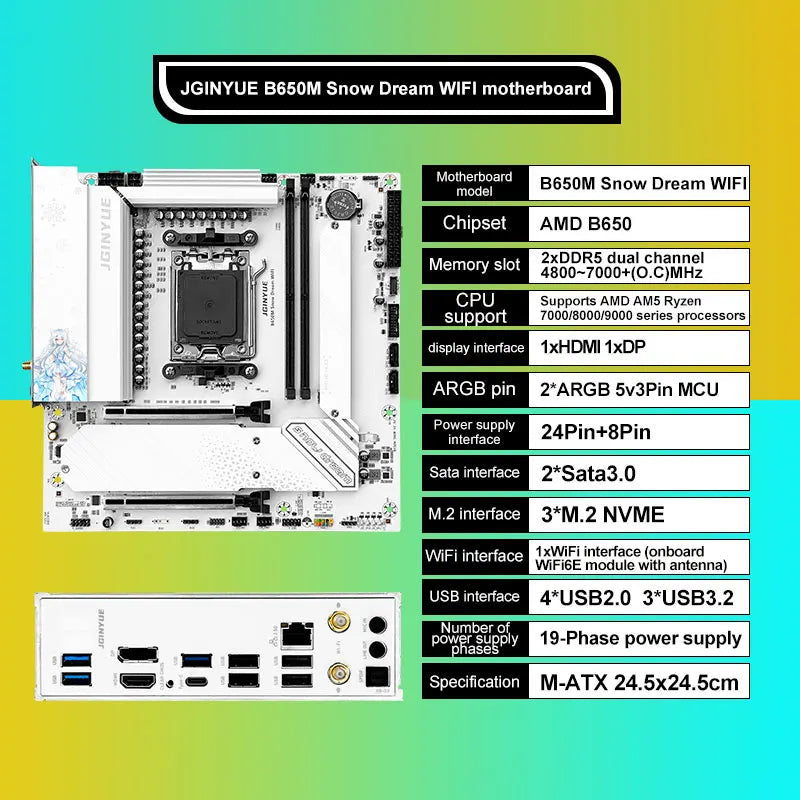

Motherboard model
B650M Snow Dream WIFI
CPU socket
Supports AMD AM5 Ryzen 7000/8000/9000 series processors
chipset
AMD B650 chipset
Memory slot
2xDDR5 dual channel
Memory capacity
96G
Memory frequency
4800~9000+(O.C)MHz(Tested with Ryzen 8000 series CPU)
Storage interface
2xSATA3.0 3xM. 2 slots/supports PCIe 4.0x4
PCIe slot
1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed
USB interface
4xUSB 2.0 3xUSB 3.2 1xUSB 2.0 pin bank expandable 2 USB 2.0 1xUSB 3.2 pin bank expandable 2 USB 3.2
ARGB needle arrangement
4xARGB 5V3 pin (MCU independent control chip)
Display interface
1xHDMI 1xDP
Type-C interface
1xType-E slot, expandable with 1 5Gbps Type-C interface 1xType-C slot
Fan pin
4x4 needle arrangement
Number of power supply phases
19 phase power supply
WiFi interface
1xWiFi interface (onboard WiFi6E module with antenna)
Network
RTL8125BG 2.5G Ethernet chip
Audio chip
Realtek ALC897
Specification

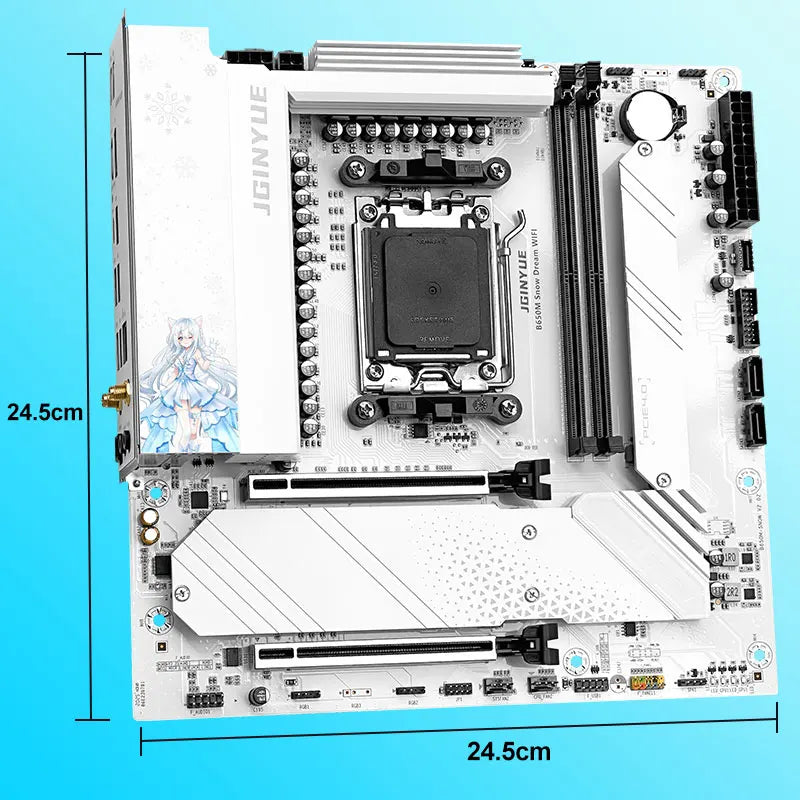

24.5x24.5cm M-ATX
Other interfaces
1xCMOS button diagnostic light
