SPECIFICATIONS

Application: Desktop,Server

Back I/O Ports: WiFi,COM,Disply Port

Battery Included: Yes

Chipset: AMD B650

Chipset Manufacturer: AMD

Form Factor: Micro-ATX

High-concerned chemical: None

Maximum Ram Capacity: 96GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 3

Number of PCI: 2

Number of PCIe x 1: 0

Number of PCIe x 16: 2

Number of PCIe x 4: 0

Number of PCIe x 8: 0

Number of SATA Ports: 2

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),RGB Header,USB 3.0 Connector

Onboard LAN: WIFI (AC)

PCI - E standards: PCI-E 5.0

Package: Yes

Ports: HDMI

Processor compatibility: AMD Ryzen 7000 Series-R5

RAID Supported: No

Socket Type: Socket AM5

Special Features: RGB,Cooling Armor,Support for Overclocking

Storage Interface Type: SATA 3,M.2 (NVMe)

Support Memory Type: DDR5

Support USB Type: USB 2.0,USB 3.0,USB 3.2 Gen1

Supports M.2 SSD: 2242,2280,2260,22110

With CPU: No

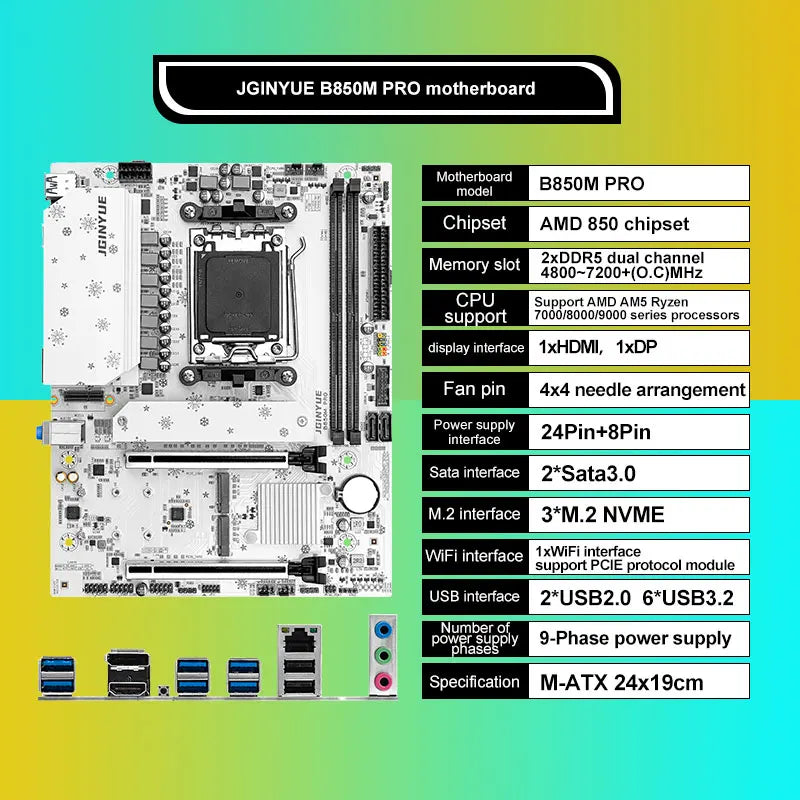

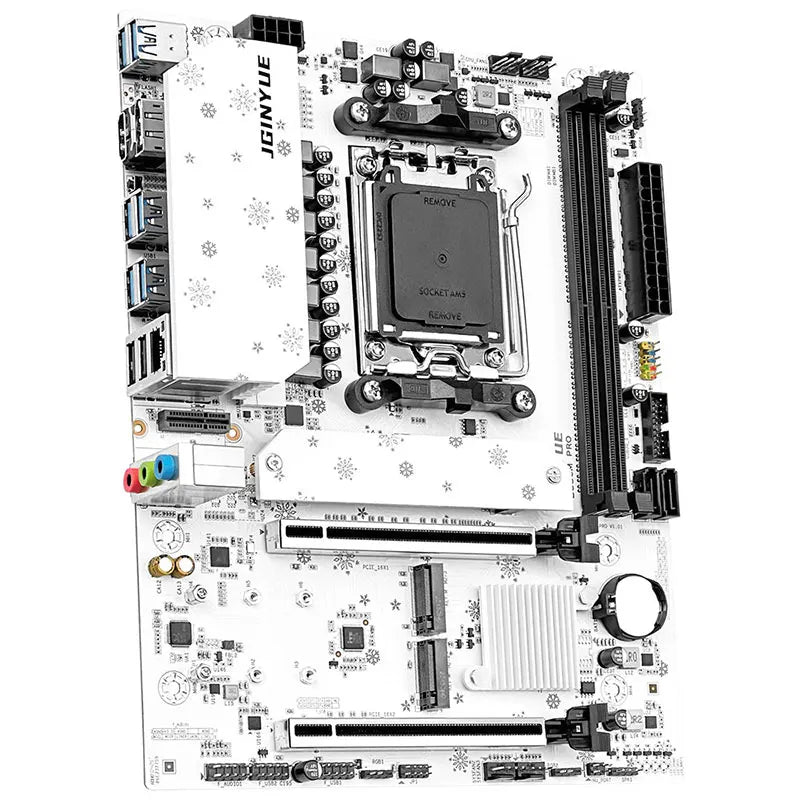

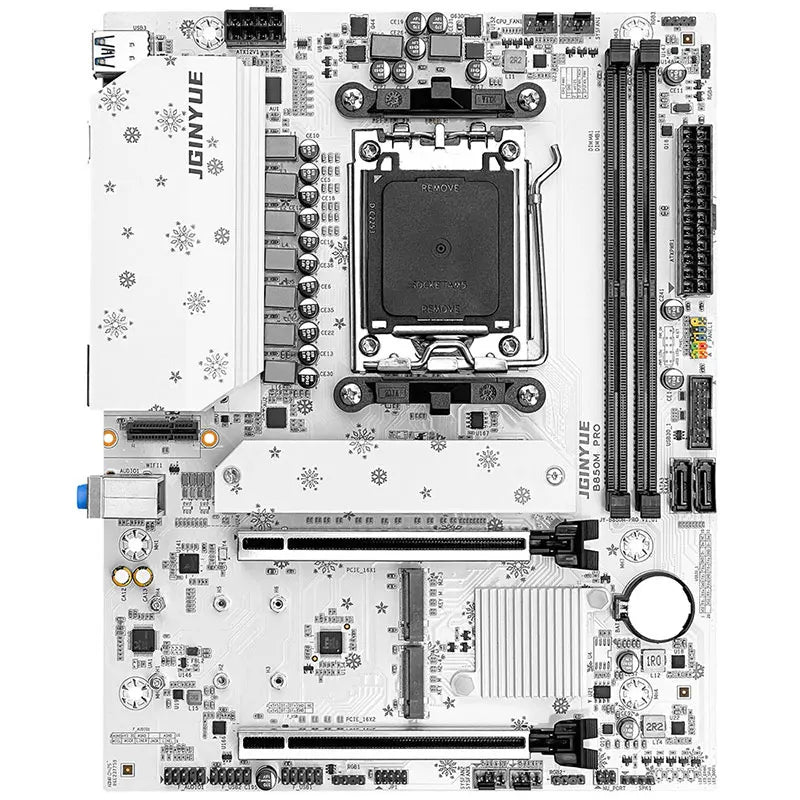

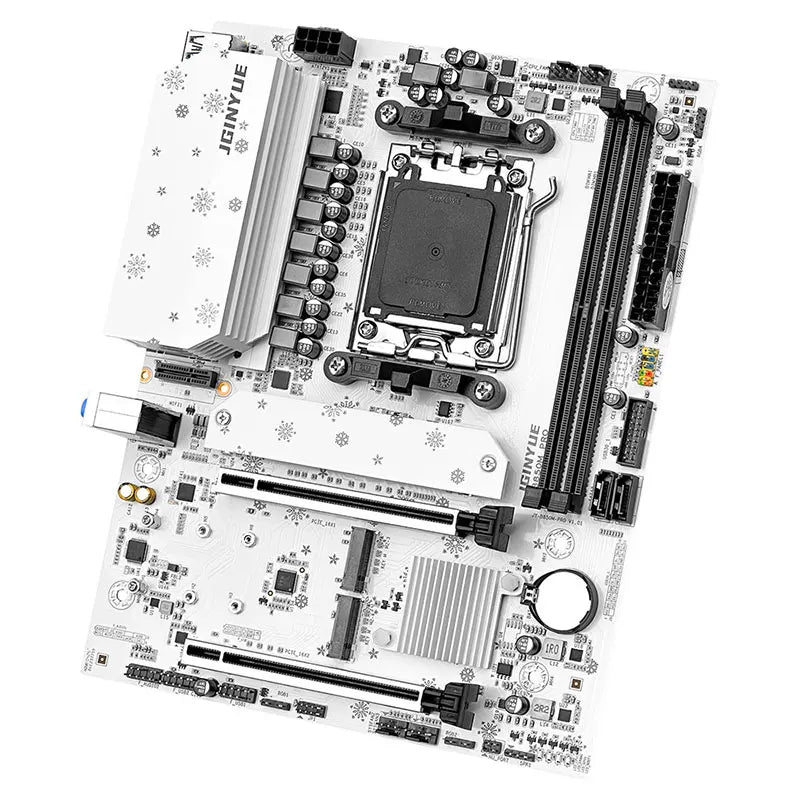

Motherboard model

B850M PRO

chipset

AMD 850 chipset

CPU socket

Supports AMD AM5 Ryzen 7000/8000/9000 series processors

Memory slot

2xDDR5

Memory capacity

96GB

Memory frequency

Dual channel DDR5 4800~7200+(O.C) MHz

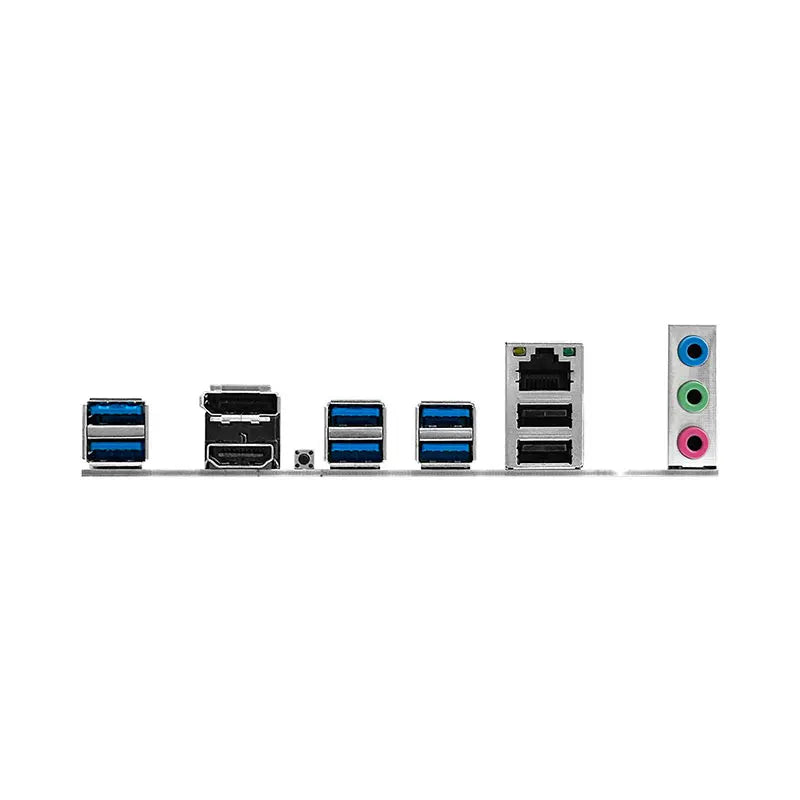

USB interface

6xUSB3.2 2xUSB2.0

USB pin

2xUSB2.0 pin bank 1xUSB3.2 pin bank

Ethernet interface

1x2.5G(RTL8125BG)

Audio chip

ALC897

Number of power supply phases

9 phases

video interface

1xHDMI 1xDP

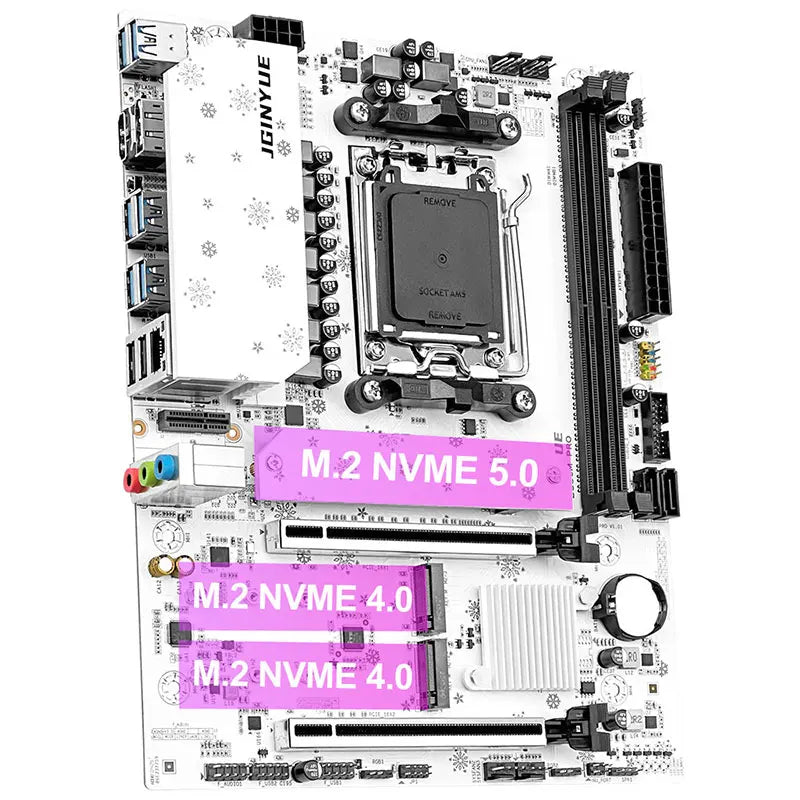

Storage interface

1xM.2 NVME5.0/2xM.2 NVME 4.0 2xSATA3.0

Expansion Slots

1xPCIe 4.0X16 slot 1xPCIe 4.0X16 slot X4 speed

ARGB needle arrangement

4xARGB 5V3 pin (MCU independent control chip)

Fan pin

4x4 needle arrangement

WiFi interface

1xWiFi interface supports PCIE protocol module

Specification

24x19cm M-ATX

Power supply interface

24PIN+8PIN

Other interfaces

SPK1 buzzer pin, diagnostic light, CMOS button
