SPECIFICATIONS

Application: Desktop



Back I/O Ports: 1x RJ45

Chipset: Intel B75

Chipset Manufacturer: Intel

Hign-concerned Chemical: None

Maximum Ram Capacity: 16GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI - E 3.0

Package: Yes

Processor compatibility: Intel 0thers

RAID Supported: No

Socket Type: LGA 1155

Special Function: None

Storage Interface Type: SATA

Support Memory Type: DDR3

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No



If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

Specifications:

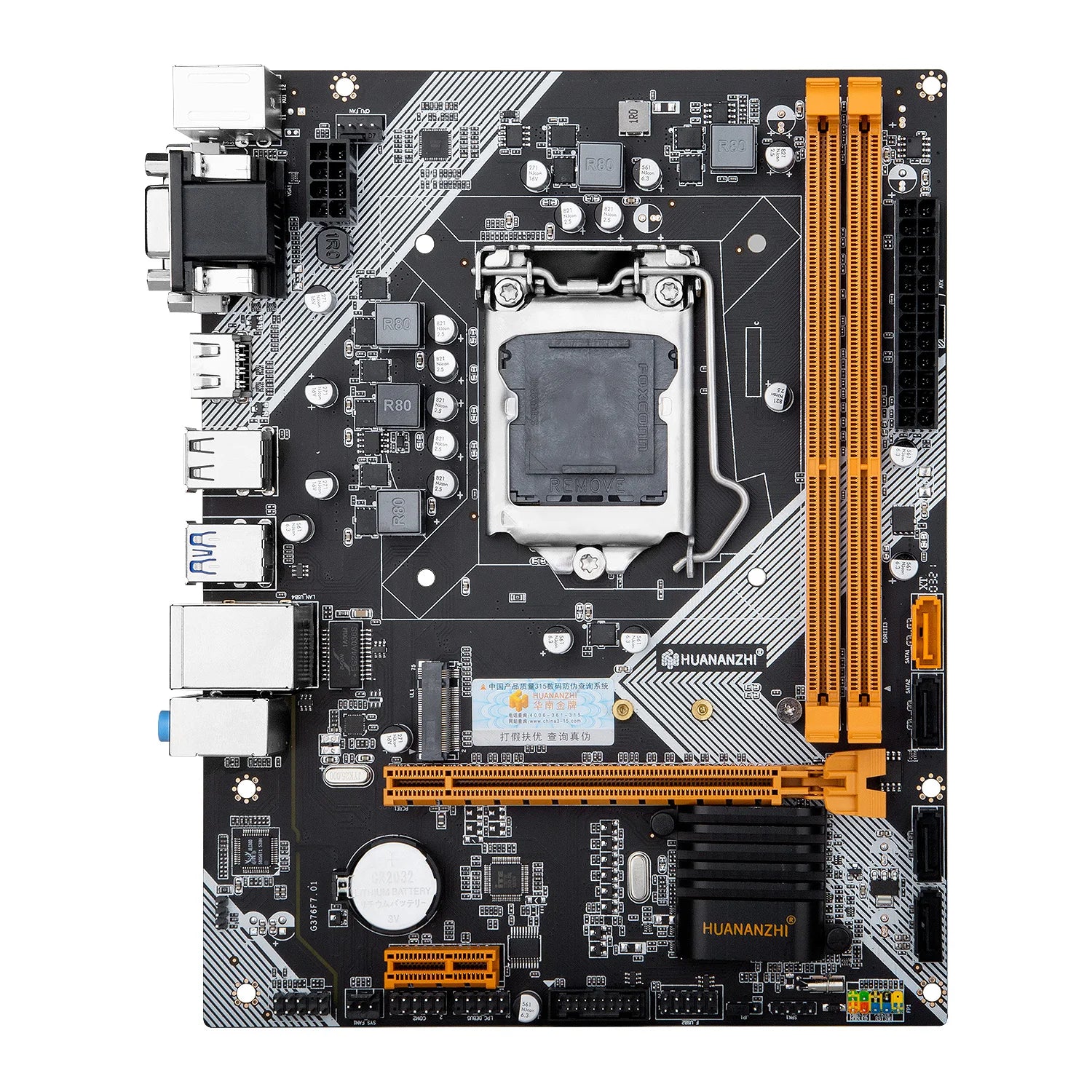

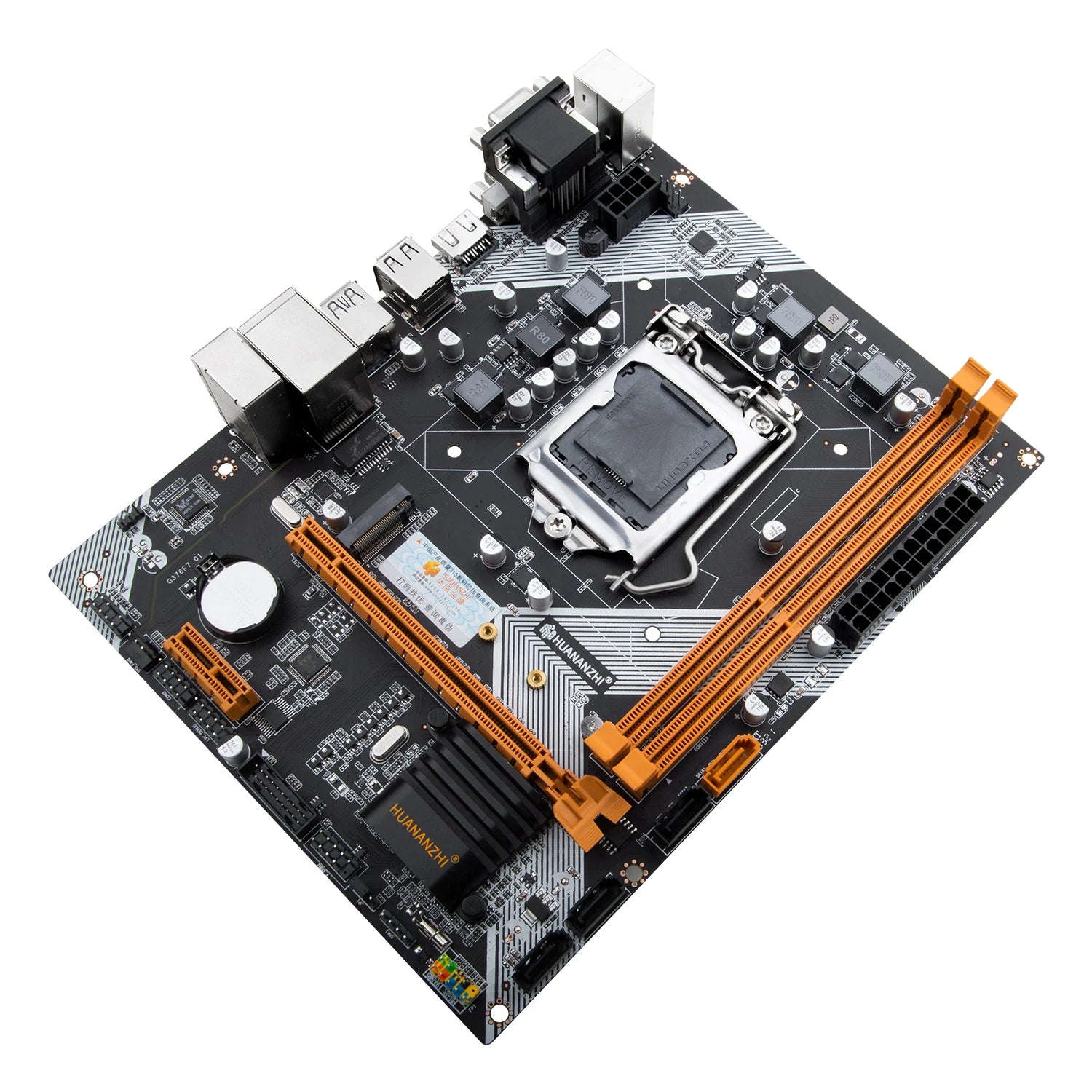

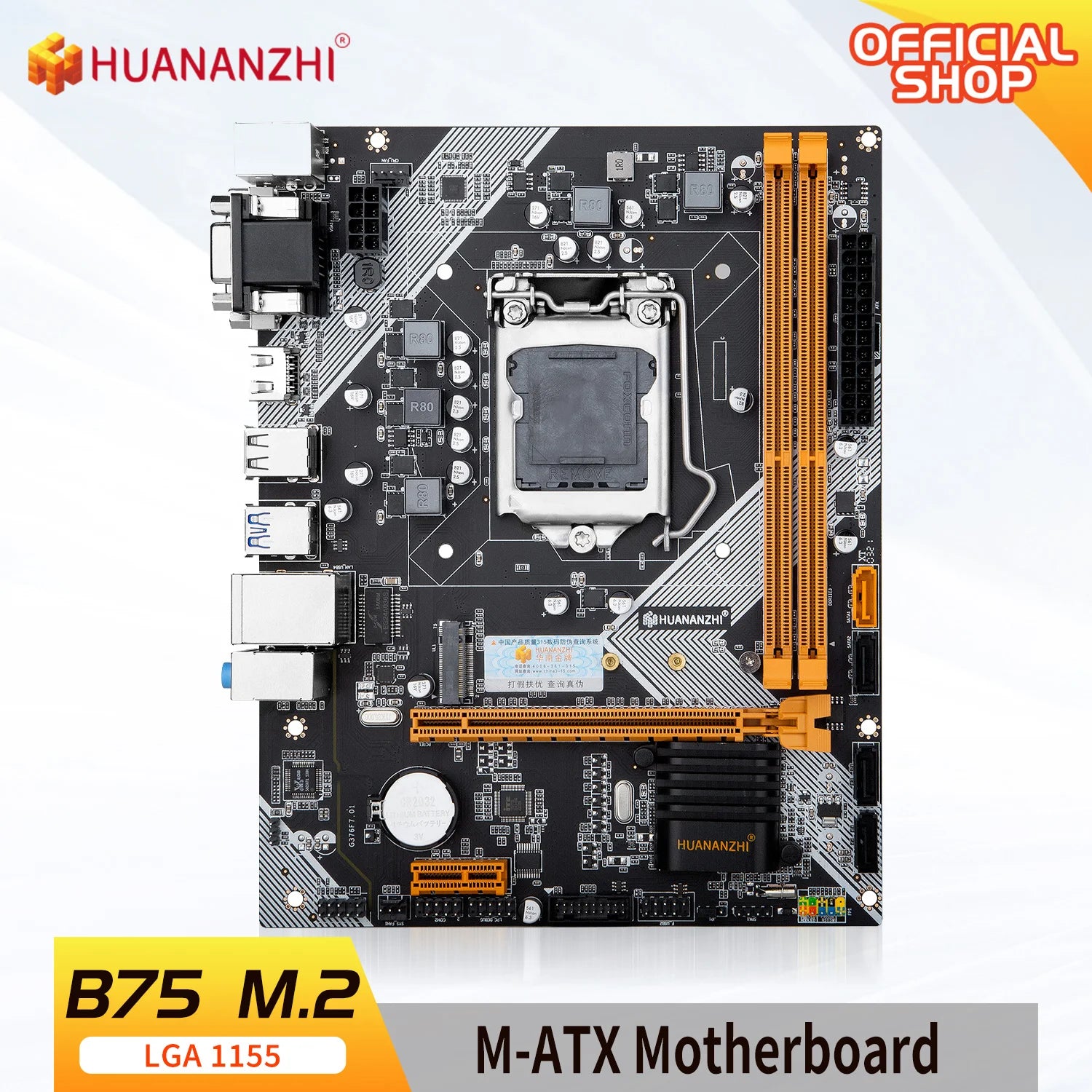

Model：HUANANZHI B75 M.2 Motherboard
CPU Socket：Support Intel® 1151 Processors
Ｍemory Socket：2*DDR3 Memory，Supports a maximum of 16 GB
Ｍemory Standard：Support Dual channel DDR3 1600/1333MHz
SATA Inderface：3*SATA2.0 interface，1*SATA3.0 interface

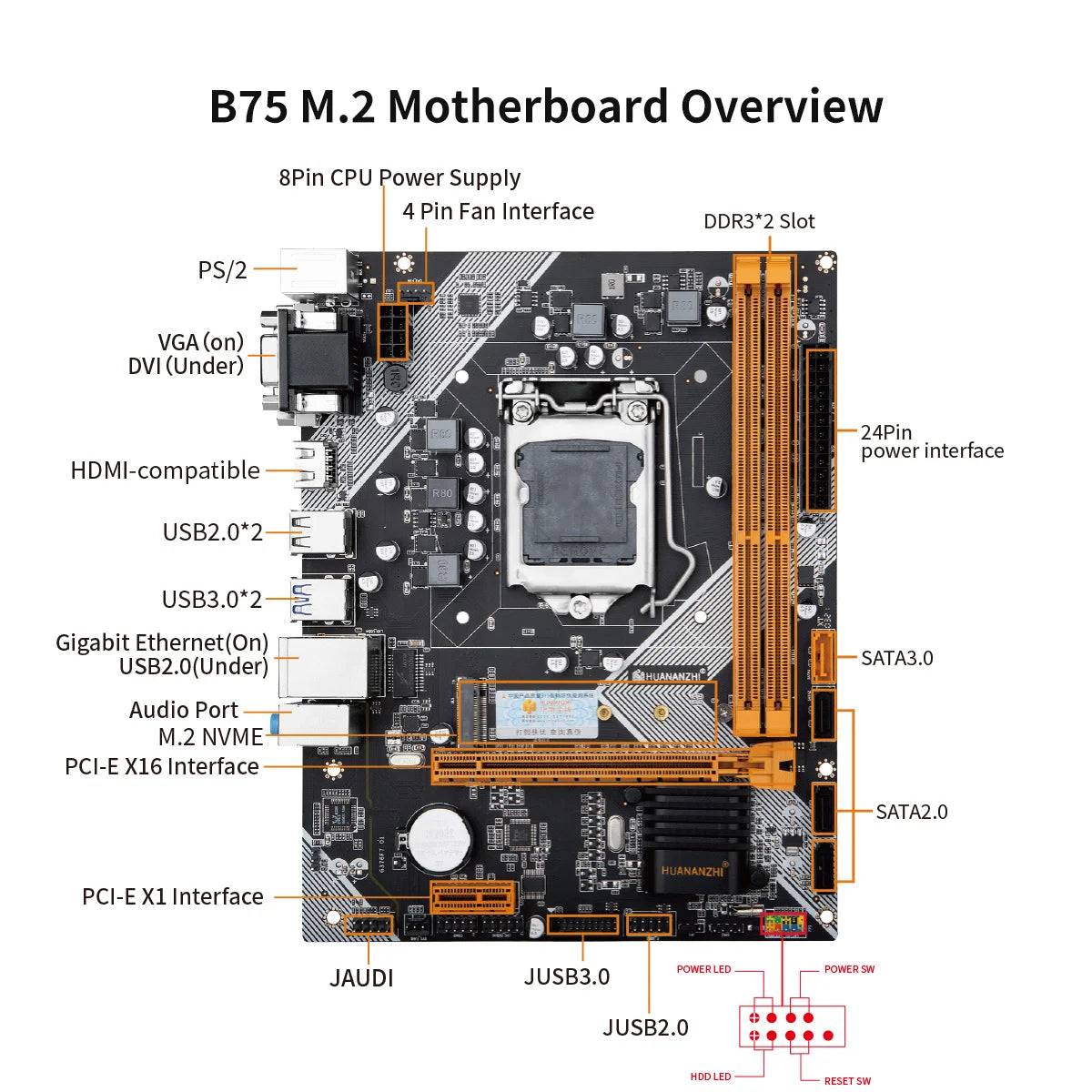

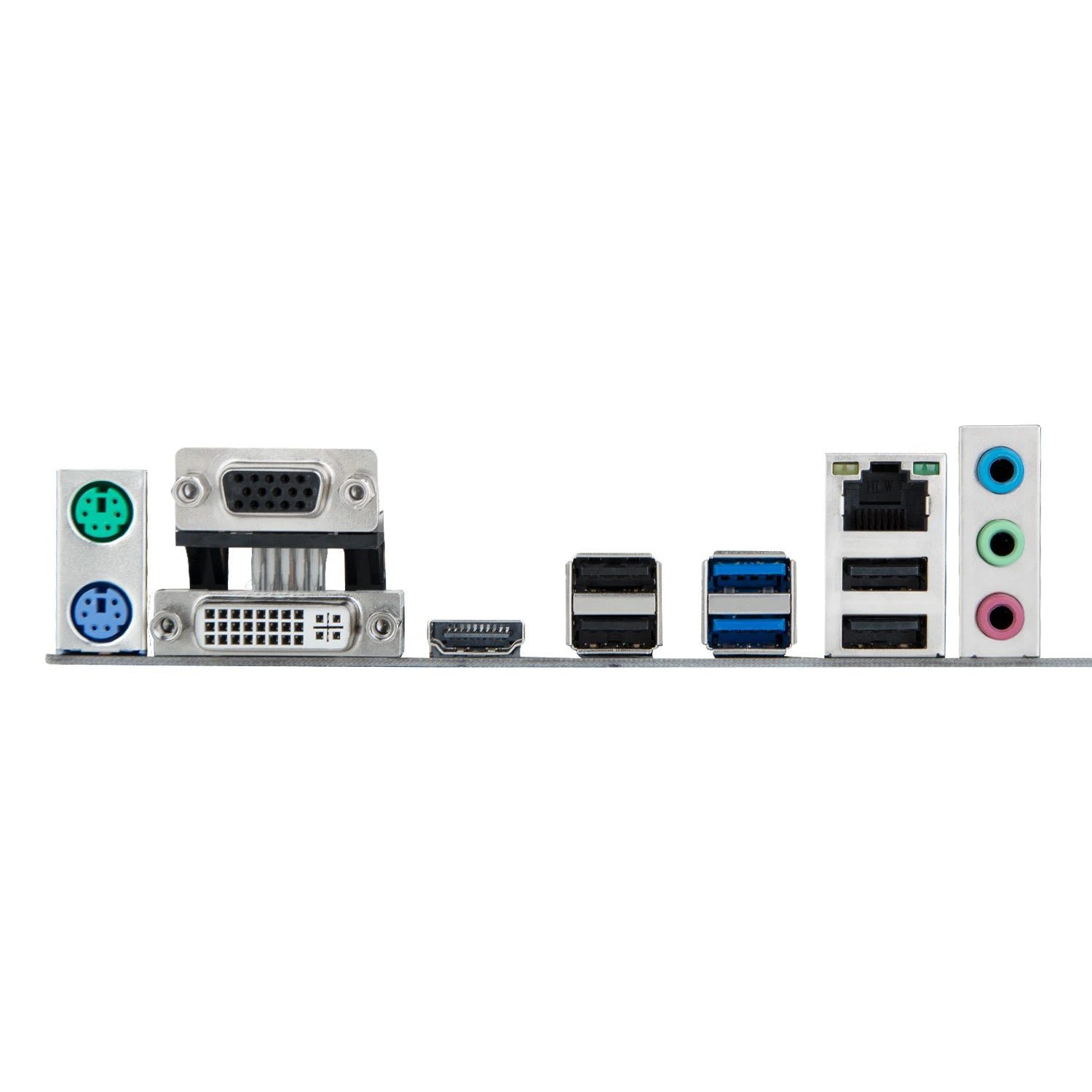

Extended Inderface：IO：1*PS/2 Mouse / Keyboard interface，4*USB2.0，2*USB3.0，1*Gigabit Ethernet Card，3*3.5MM Audio interface；Other ports: VGA+HDMI+DP；Expansion pin：1*9pin USB2.0，1*19pin USB3.0；1*Front audio output pin
Expansion Slots：1*PCI Express3.0X16，1*PCI ExpressX1，1*M.2 NVME
Soud Track：5.1
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：2
PCB layer：4 layer PCB，5Phases power supply
Dimension：215*168MM M-ATX

Note:

1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.



Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
