SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Chipset: Intel B760

Chipset Manufacturer: Intel

Hign-concerned Chemical: None

Maximum Ram Capacity: 64 GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI - E 4.0

Package: Yes

Processor compatibility: Intel Xeon E Series

RAID Supported: No

Socket Type: LGA 2011-3

Special Function: None

Storage Interface Type: SATA

Support Memory Type: DDR4

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No



If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

Specifications:

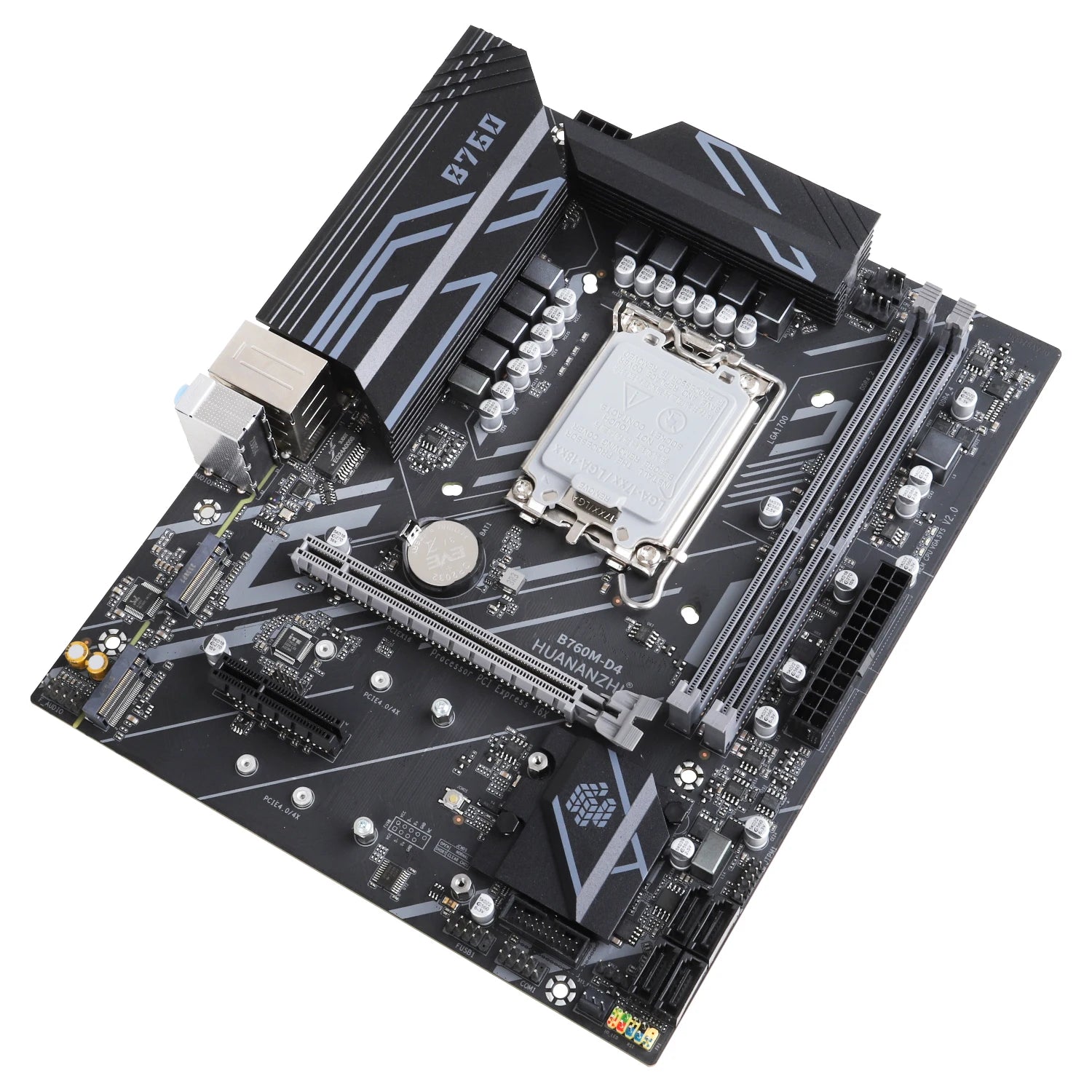

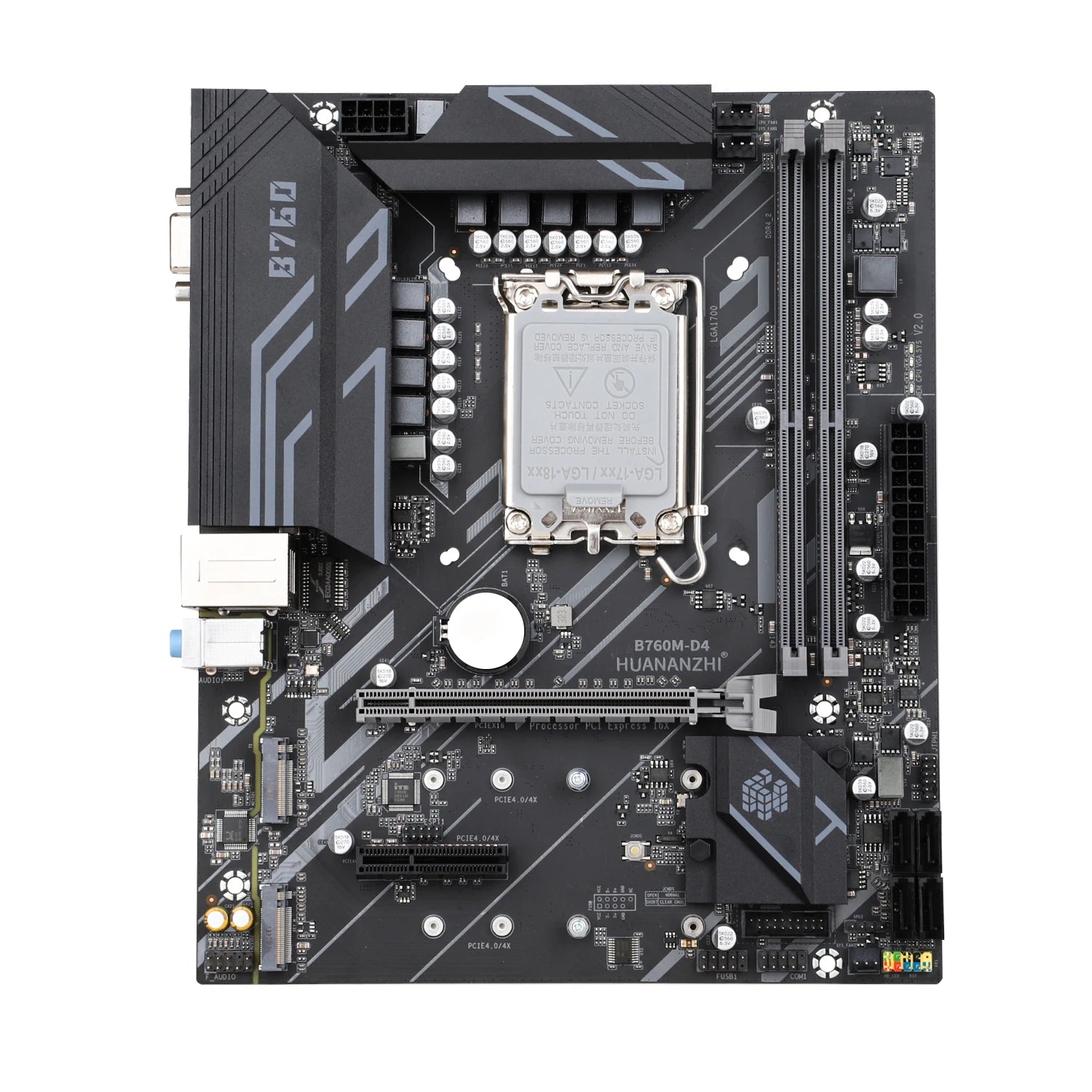

Model：HUANANZHI B760M-D4 Motherboard
CPU Socket：Supports Intel 12 processors LGA 1700 Processors
Ｍemory Socket：2*DDR4 memory socket，Maximum Memory Capacity 64G
Ｍemory Standard：Support Dual channel DDR4 3200/2666/2400/2133MHz（Support XMP overclocking / depending on CPU）
SATA Inderface：4 *SATA3.0 6Gbps interface

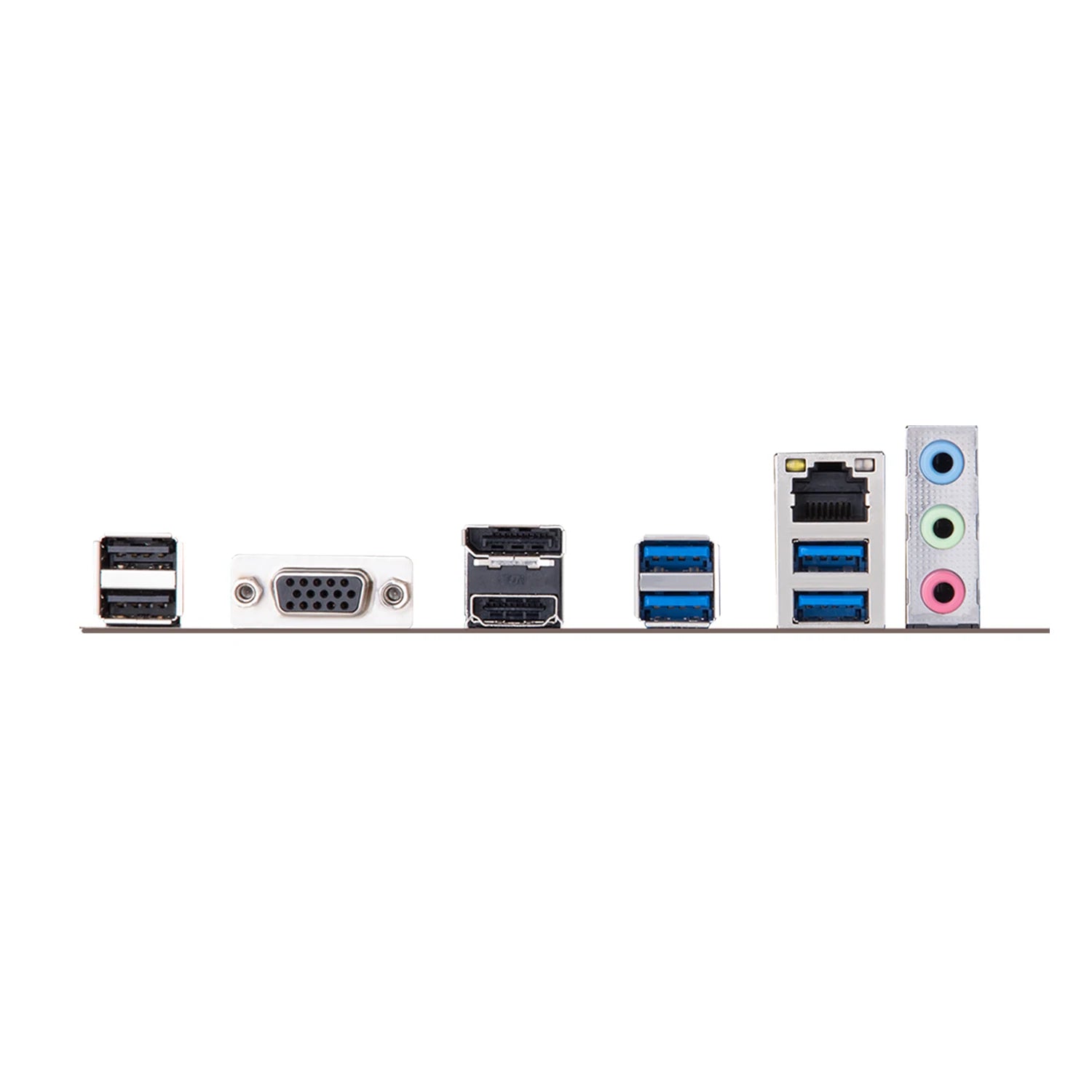

Extended Inderface：2 * M.2 22110 NVME PCIE X4 4.0；2*USB3.2 Gen2 10Gb/s interfaces, 3*USB3.2 GEN1 5Gb/s interfaces, 3*USB2.0 480Mbps interfaces, 1 VGA interface, 1 HDMI2.1 interface, 1 DP1.4 interface, 1*1 network interface, 1*3-hole audio port
Expansion Slots：1 PCI Expressx16 4.0 slot, 1 PCI Expressx4 4.0 slot
Soud Track：Realtek High Definition Audio
Network interface：Gigabit Ethernet
Power interface：24pin+8pin
Fan interface：1 *CPU_FAN + 2* SYS_FAN
PCB layer：6 layer PCB，10Phases power supply
Dimension：235*195MM M-ATX

Note:

1.The motherboard does not have integrated graphics, the cpu needs to support Core Graphics card, and the video output interface can be used.

2.Without cooler Holder Base



Note:

1.Please allow 1-3mm differs due to manual measurement.

2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.



Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
