SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Chipset: Intel H97

Chipset Manufacturer: Intel

Hign-concerned Chemical: None

Maximum Ram Capacity: 32 GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: Intel Others

RAID Supported: No

Socket Type: LGA1150

Special Features: None

Storage Interface Type: SATA

Support Memory Type: DDR3

Usage Scenario: Gaming,Audio & Video,Office

With CPU: No



If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

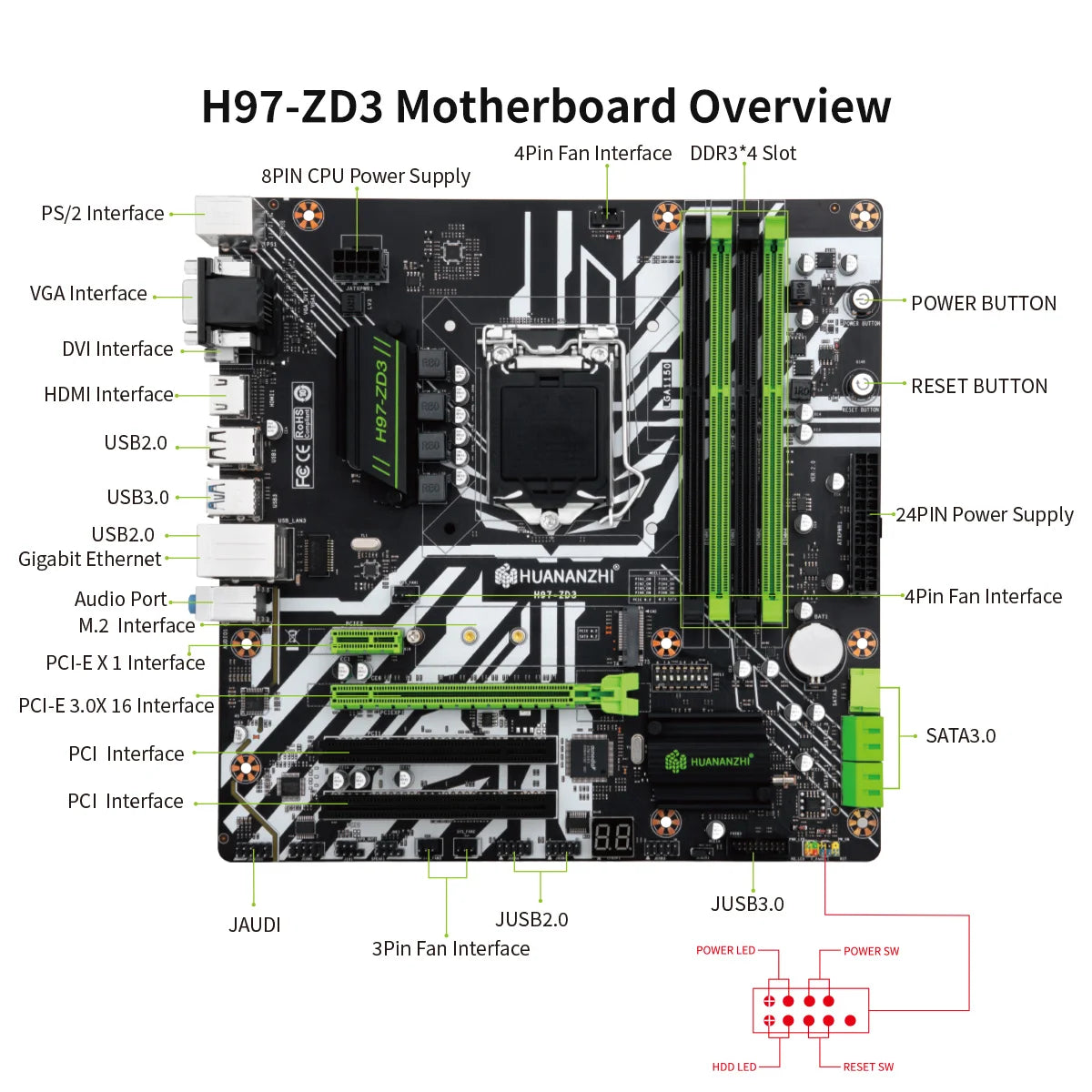

Specifications:

Model：HUANANZHI H97-ZD3 Motherboaro
CPU Socket：Support Intel LGA1150
Memory Socket：4*DDR3 Memory Socket
Memory Standard ：Support Dual channel DDR3 1600/1333MHz Maximum Memory Capacity 32G
SATA：5*SATA3.0 Interface

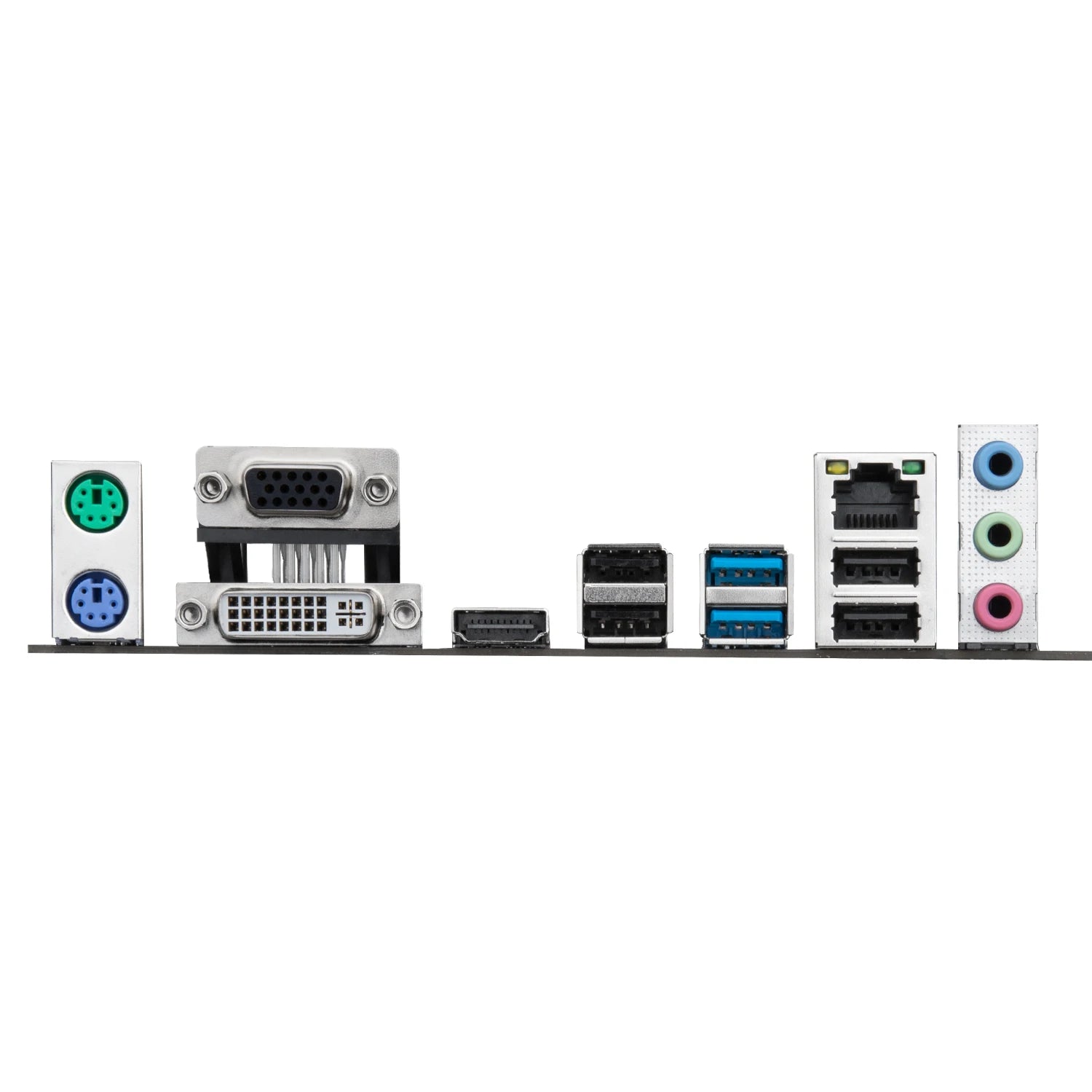

Extended interface：IO: 1*PS/2 Mouse/ keyboard interface, 2*USB3.0. 4*USB2.0, 1*Gigabit Ethernet Card, 3*3.5MMAudio interface;
Expansion pin：1*9pin USB2.0; 1*19pin USB3.0; 1*Front audio output pin
Expansion Slots：1*PCI Express3.0X16, 1"PCI ExpressX1, 2"PCI, 1*M.2 NVME/NGFF
Soud Track：5.1 Sound Track
Network lnterface：Gigabit Ethernet Card
Power interface：24pin+8pin
Fan interface：4
PCB ayer ：6 laver, 4Phases
Dimension：243*243MM M-ATX

Note:

1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.


Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
