SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Chipset: c612

Chipset Manufacturer: Intel

Hign-concerned Chemical: None

Maximum Ram Capacity: 128 GB

Number of PCI: 0

Onboard LAN: 1x RJ45

PCI - E standards: PCI - E 3.0

Package: Yes

Processor compatibility: Intel Xeon E Series

RAID Supported: No

Socket Type: LGA 2011-3

Special Function: None

Storage Interface Type: SATA

Support Memory Type: DDR4

With CPU: No



If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price

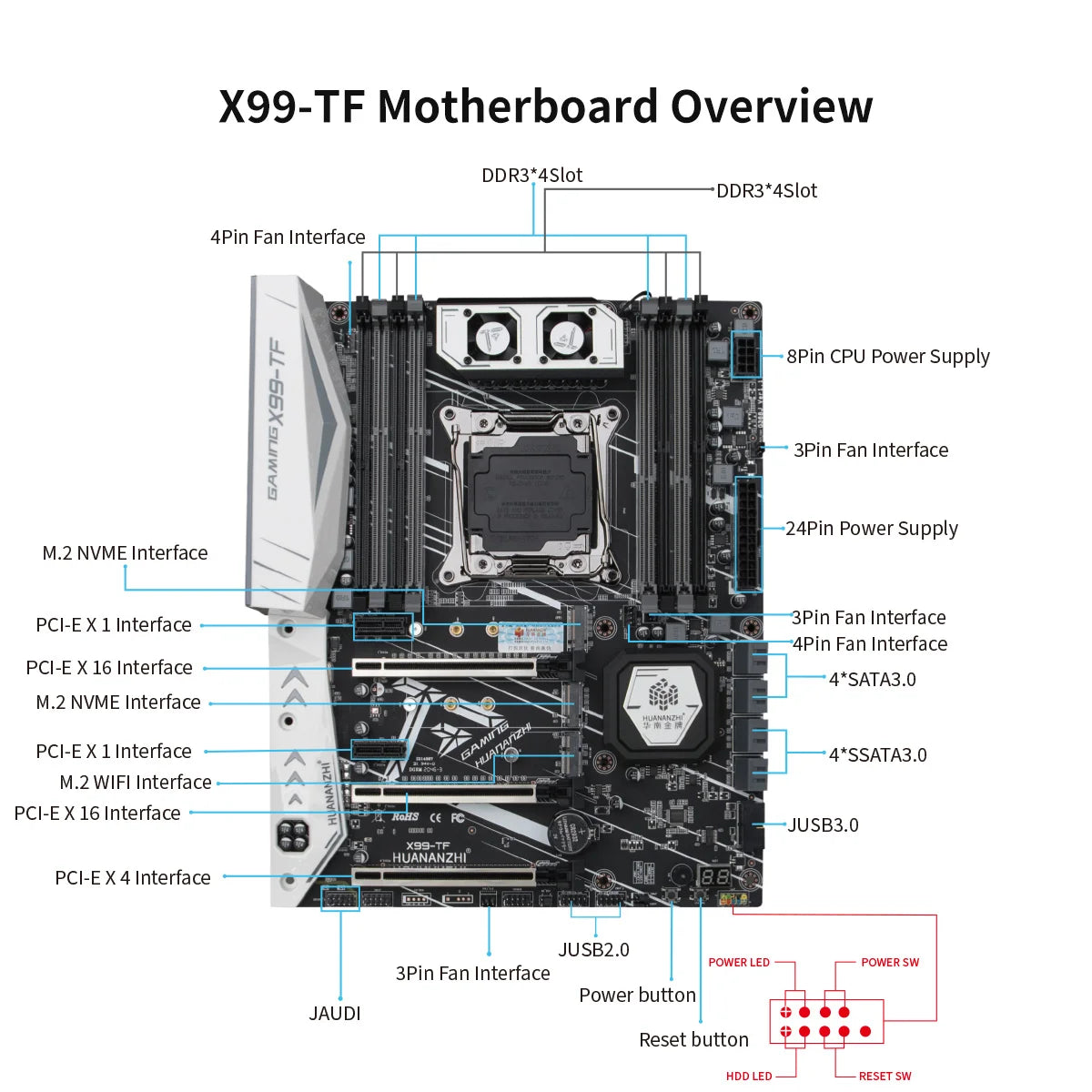

Specifications:

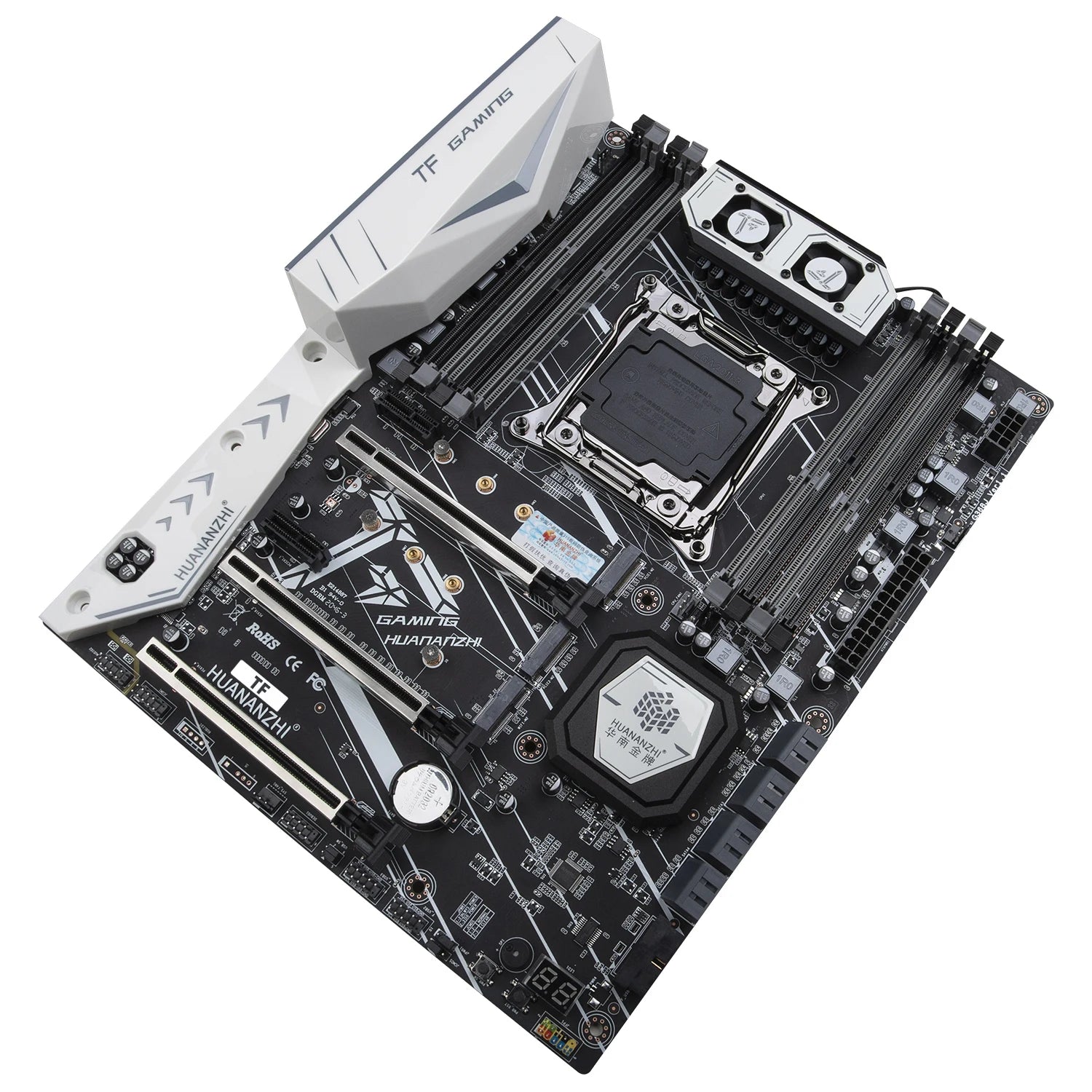

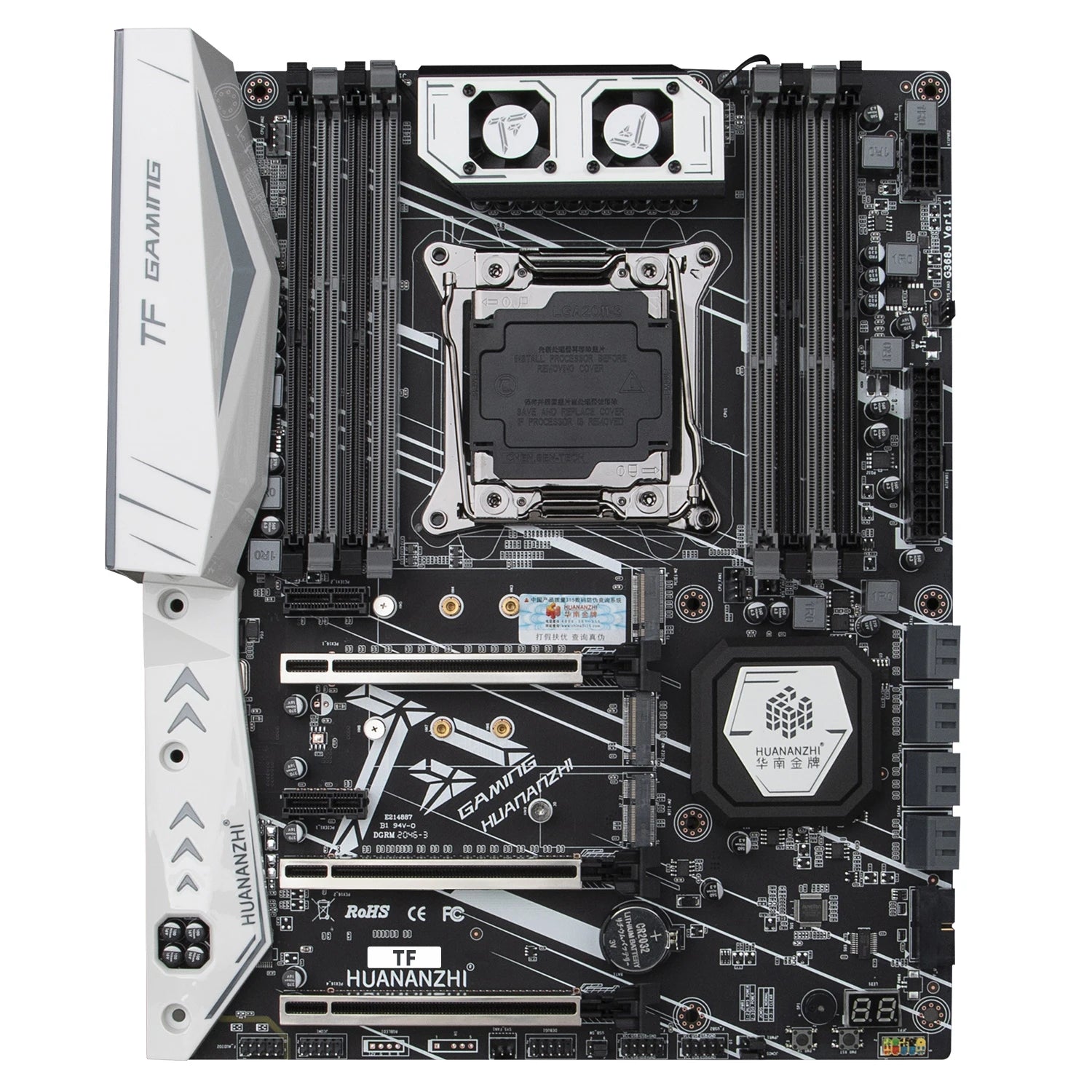

Model：HUANANZHI TF Motherboard

CPU Socket：Support Intel® 2011-3 Processors

Main chipset: C612 ... Etc chipset shipped randomly

Ｍemory Socket：4*DDR3 Memory,4*DDR4 Memory，(when use DDR3 memory support Intel® Xeon 2678V3/2676V3/2673V3/2629V3/2649V3/2669V3/2696V3)，Maximum Memory Capacity 4*32G

Ｍemory Standard：Support Dual channel DDR3 1866/1600/1333MHz，DDR4 2400/2133/1866MHz

SATA Inderface：6*SATA3.0 interface，2*SSATA3.0 interface

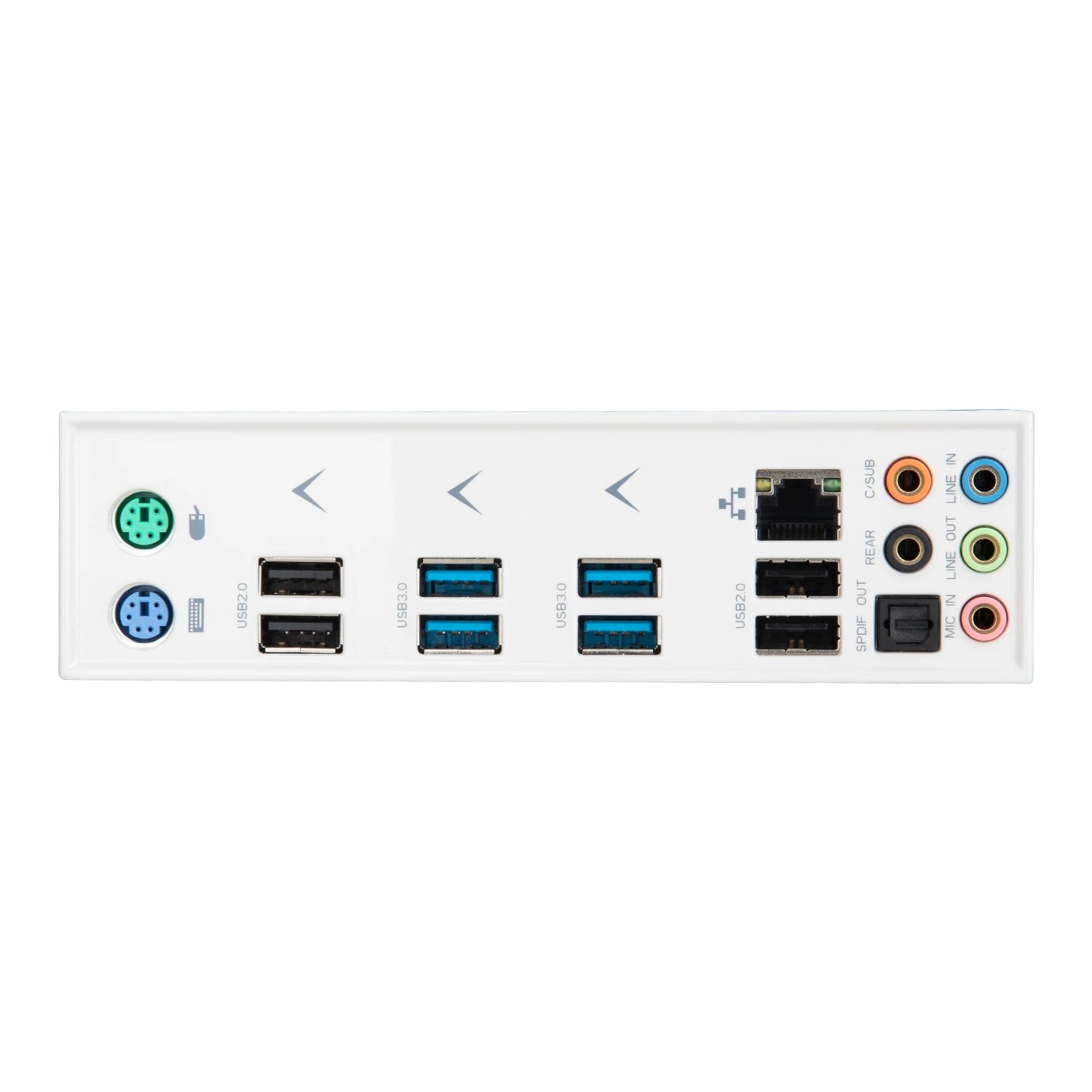

Extended Inderface：IO：1*PS/2 Mouse / keyboard interface，4*USB2.0，4*USB3.0，1*Gigabit Ethernet Card，6*3.5MM Audio interface；1*Digital audio nterfac，Expansion pin：2*9pin USB2.0，1*19pin USB3.0，1*Front audio output pin

Expansion Slots：2*PCI Express3.0X16，2*PCI ExpressX1，1*PCI ExpressX4，2*M.2 NVME，1*M.2 WIFI

Soud Track：7.1

Network interface：Gigabit Ethernet

Power interface：24pin+8pin

Fan interface：4

PCB layer：10 layer PCB，6Phases power supply

Dimension：300*244MM ATX



Motherboard does not support RGB

Note:

1.The platform needs powerful power. Please make sure your power supply is sufficient to support it(at least 500w power supply) .
2.Please allow 1-3mm differs due to manual measurement.
3.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.



Before Packaging

Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
